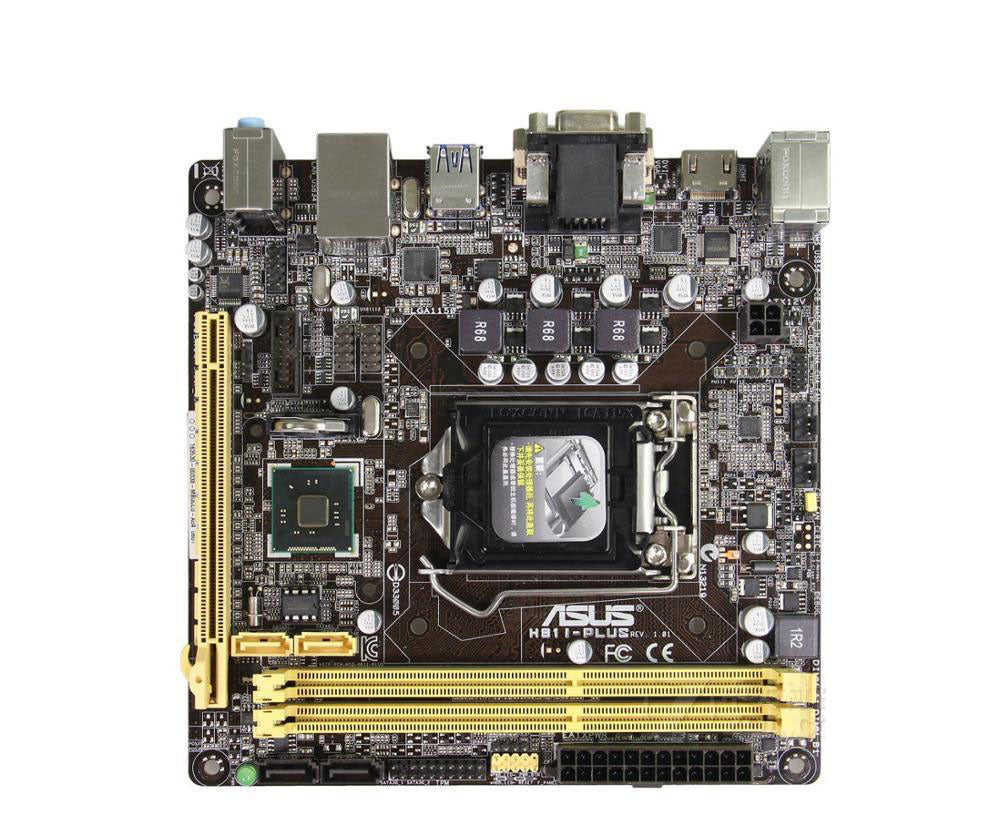

motherboard ASUS H81I-PLUS Mini ITX HTPC Computer Motherboard Desktop motherboard
This motherboard is used , about 90% new , 100% tested it is working well before shipping, and maybe without CMOS battery for air transport.
Packing: motherboard and I/O shield back plate and sata cable.
CPU
Intel Socket 1150 Supports 4th Generation CoreTM i7/CoreTM i5/CoreTM i3/Pentium/Celeron Processors
Supports Intel 22 nm processor
Supports Intel Turbo Boost 2.0 Technology
* Please visit www.asus.com.cn for the latest processor support list.
* Whether support for Intel Turbo Boost 2.0 technology is supported varies by processor type.
chipset
Intel H81
RAM
2 x U-DIMM memory slot, maximum capacity 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) Technology
* Please visit www.asus.com.cn or refer to the user manual for a Qualified Supplier Support List (QVL).
* Due to CPU behavior limitations, DDR3 1600 MHz and higher memory modules operate in DDR3 1600 MHz defaults in XMP mode.
Graphic display
Integrated graphics processor
- Supports DVI: Maximum display resolution 1920 x 1200 @ 60 Hz
- Supports HDMI: Maximum display resolution 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Support RGB: Maximum display resolution 1920 x 1200 @ 60 Hz
Maximum shared memory: 1024 MB
Expansion slot
1 x PCIe 2.0 x16 expansion card slot
Storage function
Intel H81 Chip:
2 x SATA 6Gb/s Interface, Yellow
2 x SATA 3Gb/s interface,
Supports Intel Rapid Response Technology, Intel Smart Connect Technology
Internet function
Realtek RTL8111G, 1 x Gigabit LAN
Sound effects
Realtek ALC 887 8-Channel High-Definition Audio Codec*2
USB interface
Intel H81 Chip:
4 x USB 3.0 ports (2 on the rear panel, 2 on the center of the motherboard)
Intel H81 Chip:
8 x USB 2.0/1.1 ports (4 on the rear panel, 4 on the center of the motherboard)
Unique features
ASUS EPU Energy Smart Processor:
- EPU
ASUS Power Solutions:
- ASUS DIGI+ VRM Application
ASUS exclusive features:
- Ai Charger+ Charging Expert
- Asus surge protection
- ESD protection
- AI Suite 3 (smart housekeeper 3 generations)
- UEFI Chinese Graphical BIOS (EZ mode) with friendly graphical user interface.
- USB 3.0 acceleration
- Network Intelligent Management Center
ASUS Quiet Thermal Solution:
ASUS fan people
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
100% High Quality All Solid Capacitor
Operating system support
Windows 8
Windows 7
Backplane I/O Interface
1 x PS/2 Keyboard/Mouse Composite Interface
1 x DVI-D interface
1 x D-Sub interface
1 x HDMI interface
1 x LAN (RJ45) interface
2 x USB 3.0 Interface
4 x USB 2.0 Interface
3 x audio jack
Internal I/O interface
1 x USB 3.0 Interface Expands 2 External USB 3.0 Interfaces
2 x USB 2.0 Interface Expands 4 External USB 2.0 Ports
2 x SATA 6Gb/s device connection socket
2 x SATA 3Gb/s device connection socket
1 x TPM pin
1 x CPU Fan Power Slot (1 x 4 -pin)
1 x Chassis Fan Interface (1 x 4 -pin)
1 x S/PDIF_Out Digital Audio Connector Header
1 x 24-pin EATX motherboard power supply slot
1 x 4-pin ATX 12V motherboard power supply slot
1 x Front Panel Audio Interface (AAFP)
1 x internal speaker interface
1 x System Panel Interface
1 x Clear CMOS Jumper
Accessories
manual
I/O baffle
2 x SATA 6.0Gb/s data cable
BIOS
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a
Management software
WOL by PME, PXE
CD-ROM
driver
Asus application
ASUS Online Updater
Anti-virus software (OEM version)
Dimensions
Mini ITX type
6.7 inches x 6.7 inches (17 centimeters by 17 centimeters)
Note
*1-1: Due to Intel H81 chip limitations, Intel Rapid Storage Technology can only be configured from the BIOS setup program.
*1-2: The operation of these functions depends on the installed CPU.
*2: Select the high-fidelity audio module in the front panel chassis to support 8-channel audio output.
